Offer

Homeowner/Landowner Riders

R 316TX

Loading...Rec. retail price incl. GST $11,499.00SKU: 970542710
  • Power/fuel typePetrol
  • Cutting width, min94 cm
See financing options

HOT PRICE

Save up to $700! This season take advantage of hot prices on selected Garden Tractors, Zero-Turns and Riders for a limited time!*

Terms & Conditions: *Offer valid 01/09/24 - 30/11/24 at participating Husqvarna Dealers only, while stocks last. Valid for the following models only: Garden Tractors - TS112, TS114, TS142T, TS142TXD, TS242TXD, TS248TXD, TS354 & TC114; Zero-Turns - Z146, Z242E & Z242F; Riders - R214TC, R316TX-CC103 & R316TSXAWD-CC12. CLICK HERE for more info & T&Cs.

Product description

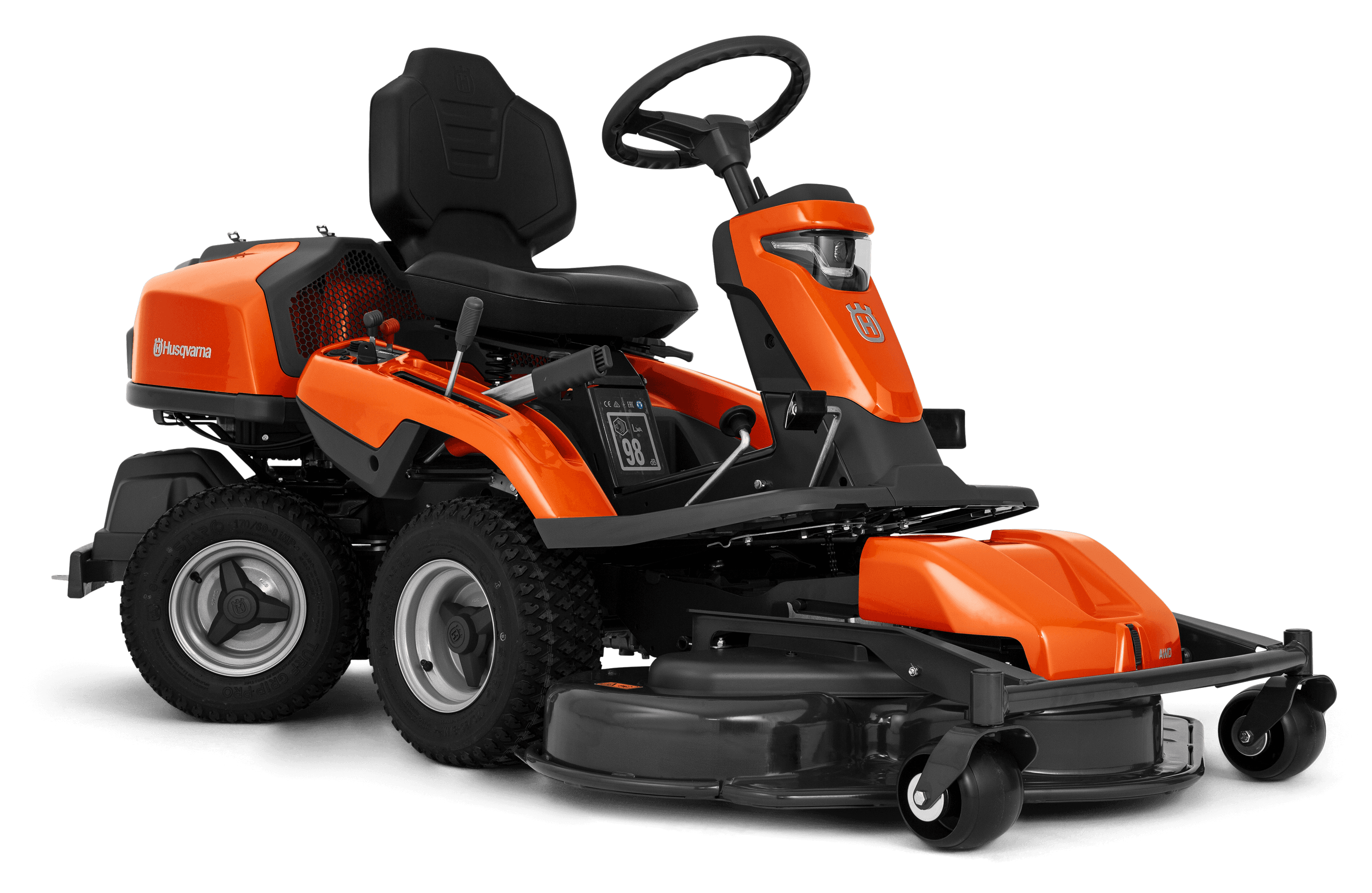

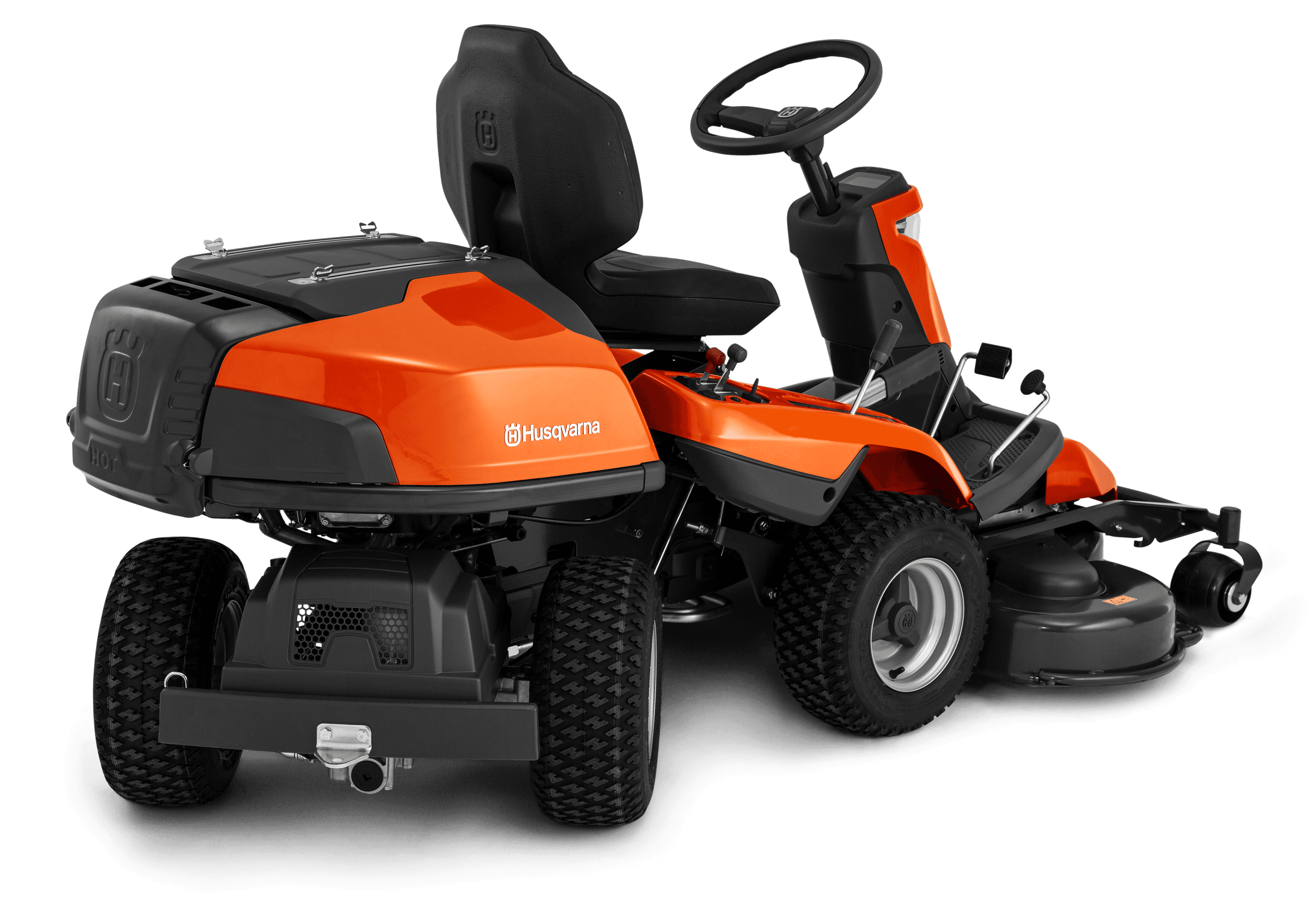

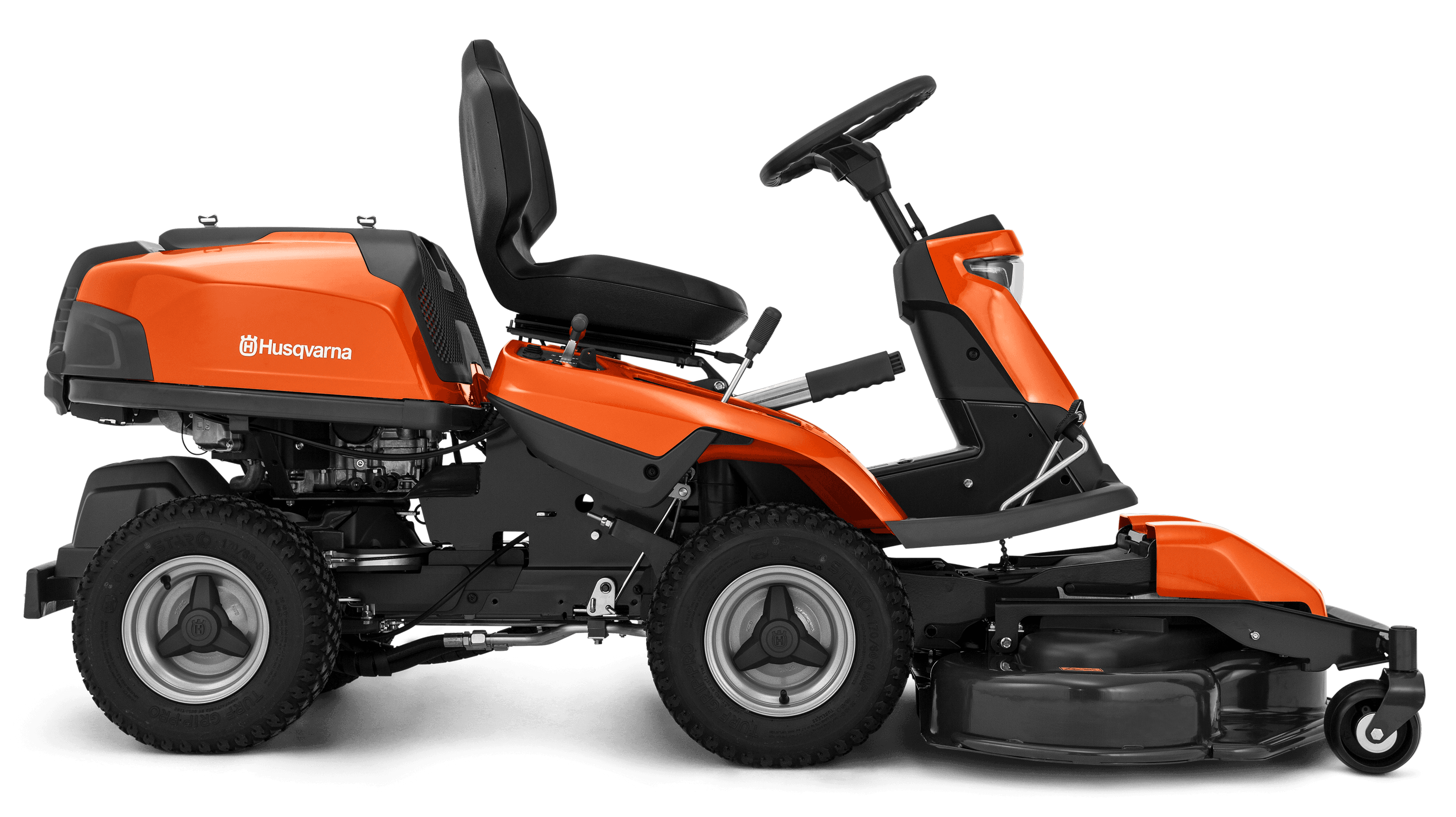

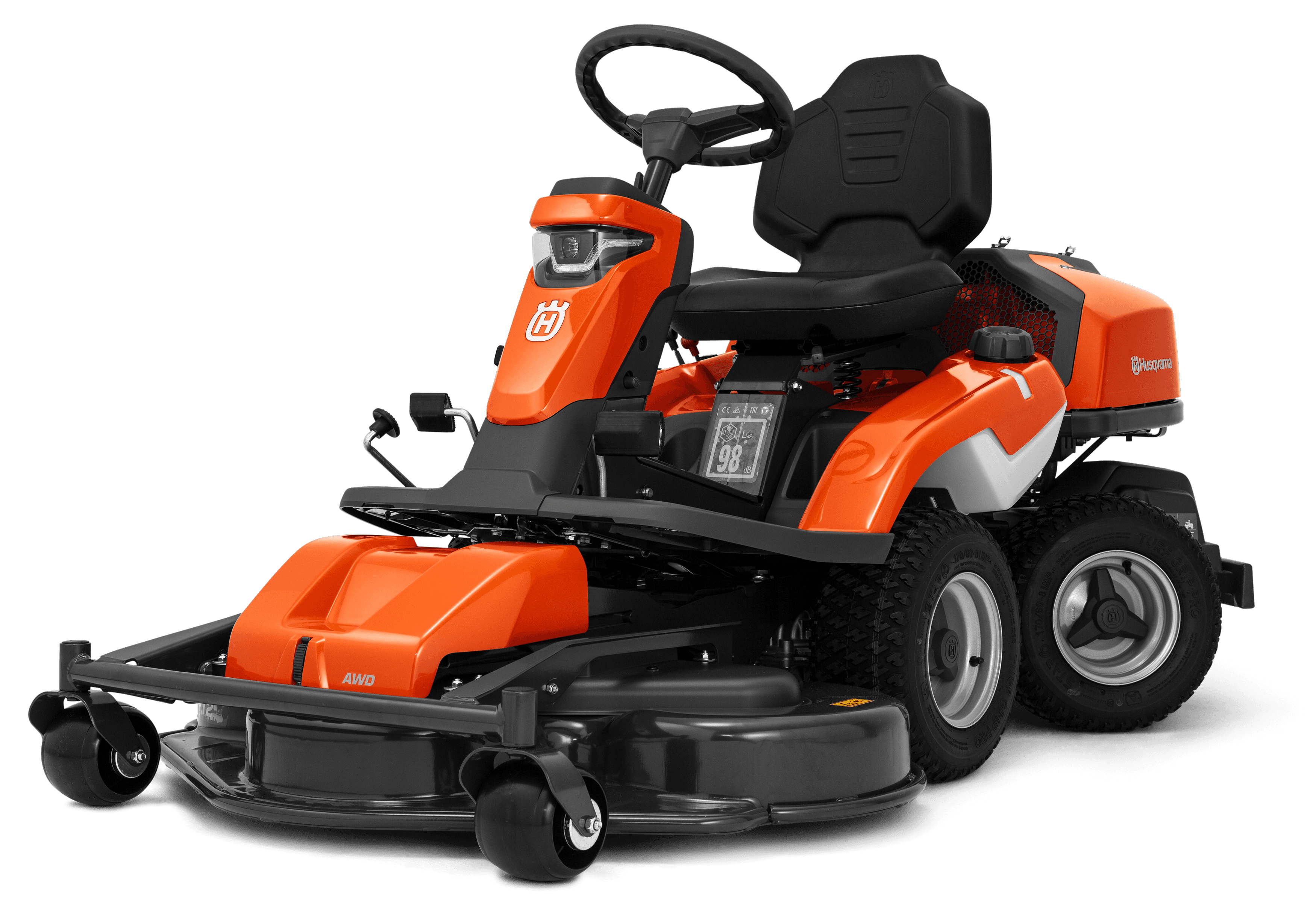

When taking on challenging lawns, you need a high-performance ride-on lawn mower with a wide range of accessories available. Husqvarna R 316TX comes with a V-twin engine and 103cm combi cutting deck with the option of first class BioClip® mulching or rear ejection. The articulated steering makes tight turns smooth, while LED headlights provide greater visibility. Ready for Husqvarna Connect with Bluetooth®.

5-year warrantyFinance options

Product Information

Features (28)

For greater ergonomics and comfort a telescopic steering column allows the steering wheel height to be adjusted. image

Adjustable steering wheel

Height adjustable steering wheel

The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn. image

Floating cutting deck

Floating cutting deck for reduced risk of scalping

Indicates when it's time to service your mower. image

Hour meter with service minder

Hour meter with service minder

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces. image

Pivoting rear axle

Pivoting rear axle for maximum traction

Easy to shift between cutting decks and front-mounted attachments, such as broom and flail mower. image

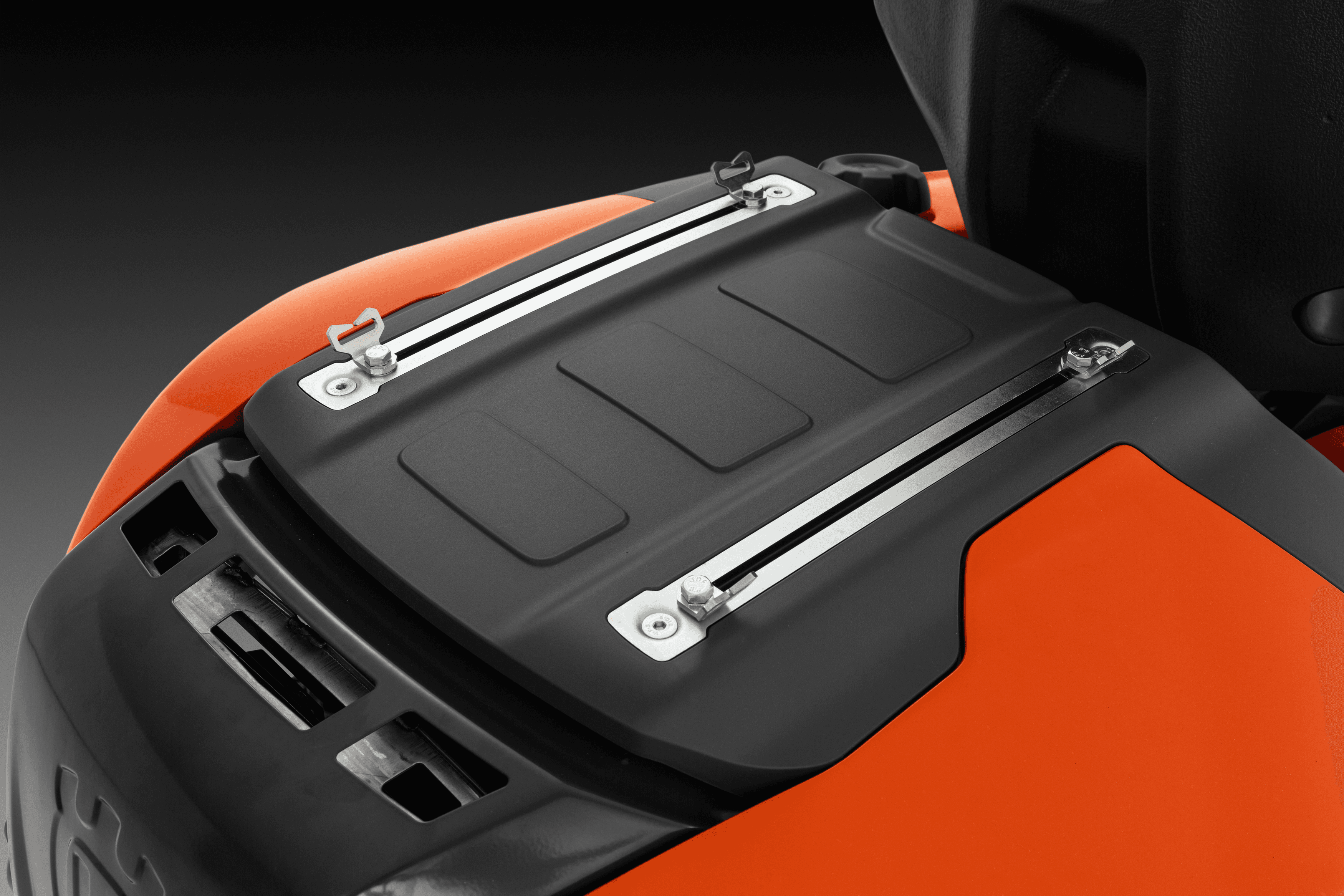

Attachment frame

Attachment frame for maximum versatility

16 inch wheels both front and back for optimal riding comfort and accessibility. image

16 inch wheels

Equally sized wheels for a comfortable ride

The intuitive display communicates with the driver through visual symbols and warning sounds, assists in handling and gives real time data and warnings. image

HMI Display

HMI Display for real time updates on your Rider's status

A wide range of attachments make our Riders exceptionally versatile. image

Attachments for versatile usage

Attachments for versatile year-round usage

This Rider is delivered with a Combi cutting deck for efficient BioClip® (mulching) and rear ejection cutting. image

Combi cutting deck

Combi cutting deck

The blades are engaged automatically, when you lower the cutting deck. image

Automatic blade engagement

The blades are engaged automatically, when you lower the cutting deck.

Speed and direction are controlled by pedals, letting you keep both hands on the steering wheel image

Pedal-Operated Transmission

Speed and direction are controlled by pedals, letting you keep both hands on the steering wheel

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing. image

Easy-access cutting height lever

Easy-access cutting height lever

Large fuel tank with transparent panel allows easy checking of fuel level. image

Transparent fuel tank

Easy fuel level check by transparent fuel tank

Thanks to the rear-mounted engine, you get a better overview of the mowing and less noise and emissions in the driver’s area. image

Engine behind driver

Engine behind driver for better overview

The open left-hand storage is easy to access while mowing. image

Storage compartment

Easy-access storage compartment

Convenient bottle holder for refreshments. image

Bottle holder

Convenient bottle holder for refreshments.

Dual LED lights for enlarged lighted area and safer operation in darker conditions. image

Dual LED lights for improved visibility.

Dual LED lights for improved visibility.

Thanks to the external fuel cap, you don't have to open the engine hood when taking on more fuel. The extra wide fuel tank opening makes refueling even easier. image

External fuel cap

External fuel cap for easy refueling

Our patented articulated steering increases driving pleasure by improving manoeuvrability. image

Patented articulated steering

Min. clearance circle by articulated steering

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user. image

Comfortable driver's position

Comfortable driver's position

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc. image

Front-mounted cutting deck

Front-mounted deck for optimum accessibility

The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damage to the lawn surface. image

Pivoting support wheels

Pivoting support wheels on the cutting deck

BioClip® (mulching) provides excellent cutting results on frequently cut areas. The grass is cut into fine pieces that quickly decompose and return to the lawn as natural fertiliser. image

BioClip®

BioClip® (mulching) mode for frequently cut areas

The tilting hood and easily accessible servicing points makes maintenance and servicing easy. image

Tilting hood

Tilting hood makes maintenance quick and easy

Service position on the cutting deck facilitates cleaning and servicing. image

Service position

Service position for easy deck maintenance

Makes it possible to plug in extra electric equipment, charge<br/>your cellular phone etc. image

12V socket outlet

12V socket outlet for electric equipment

Controls are easily accessible and designed for optimum user comfort. image

Easy-access controls

Easy-access controls for user comfort

With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play. Not yet available on all markets. image

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to tips, manuals and spare part recommendations. The app also provides additional information such as runtime and charging status as well as maintenance and service needs. <i>*not yet available in all countries</i>

Specifications

Art No: 970542710
Output shaft power9.6 kW
Weight (excl. cutting equipment)240 kg
Cylinder displacement603 cm³
Weight (complete product w/o side packed articles)240 kg
Fuel tank volume12 l
Sound pressure level at operators ear86 dB(A)
Base machine, height118.1 cm
Base machine, length204.4 cm
Base machine, width88.3 cm
Battery capacity24 Ah
Battery pack weight7.2 kg
Battery voltage12 V
Cutting height max75 mm
Cutting height min25 mm
Cutting width, max112 cm
Cutting width, min94 cm
Fuel consumption349 g/kWh
Fuel tank volume3.17 gal (US)
Gross weight towed125 kg
Ground clearance120 mm
Net power at preset rpm2900 rpm
Net power at preset rpm Energy9.6 kW
Sound power level, guaranteed (LWA)98 dB(A)
Sound power level, measured97 dB(A)
Speed forward max9 km/h
Speed reverse max8.0 km/h
Uncut circle30 cm
Vibration level seat0.7 m/s²
Vibration level steering wheel2.5 m/s²
Wheelbase88.7 cm
