P 524

Loading...Rec. retail price incl. GST SKU: 967847901

Power/fuel typePetrol
Cutting width, min112 cm

Product description

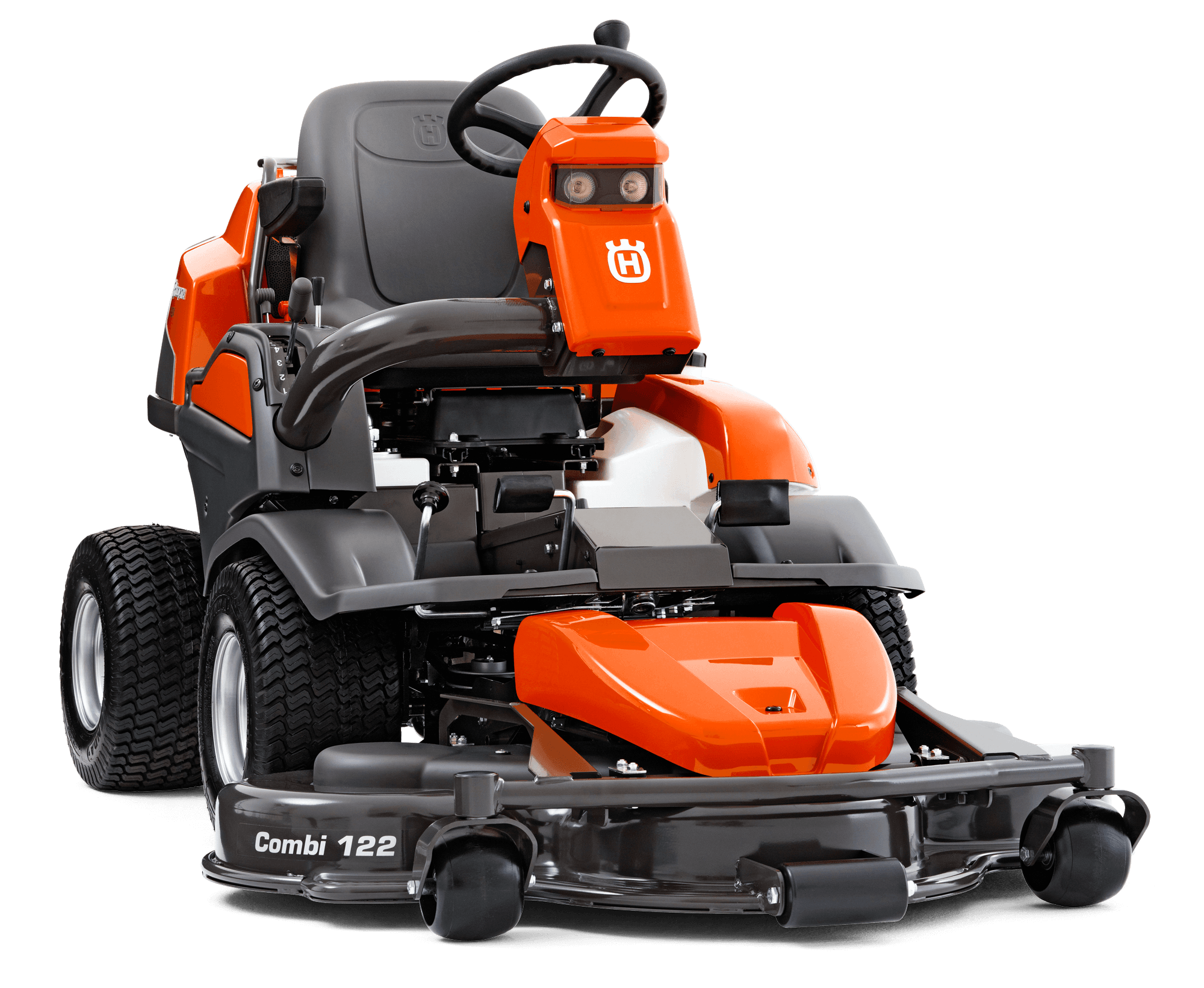

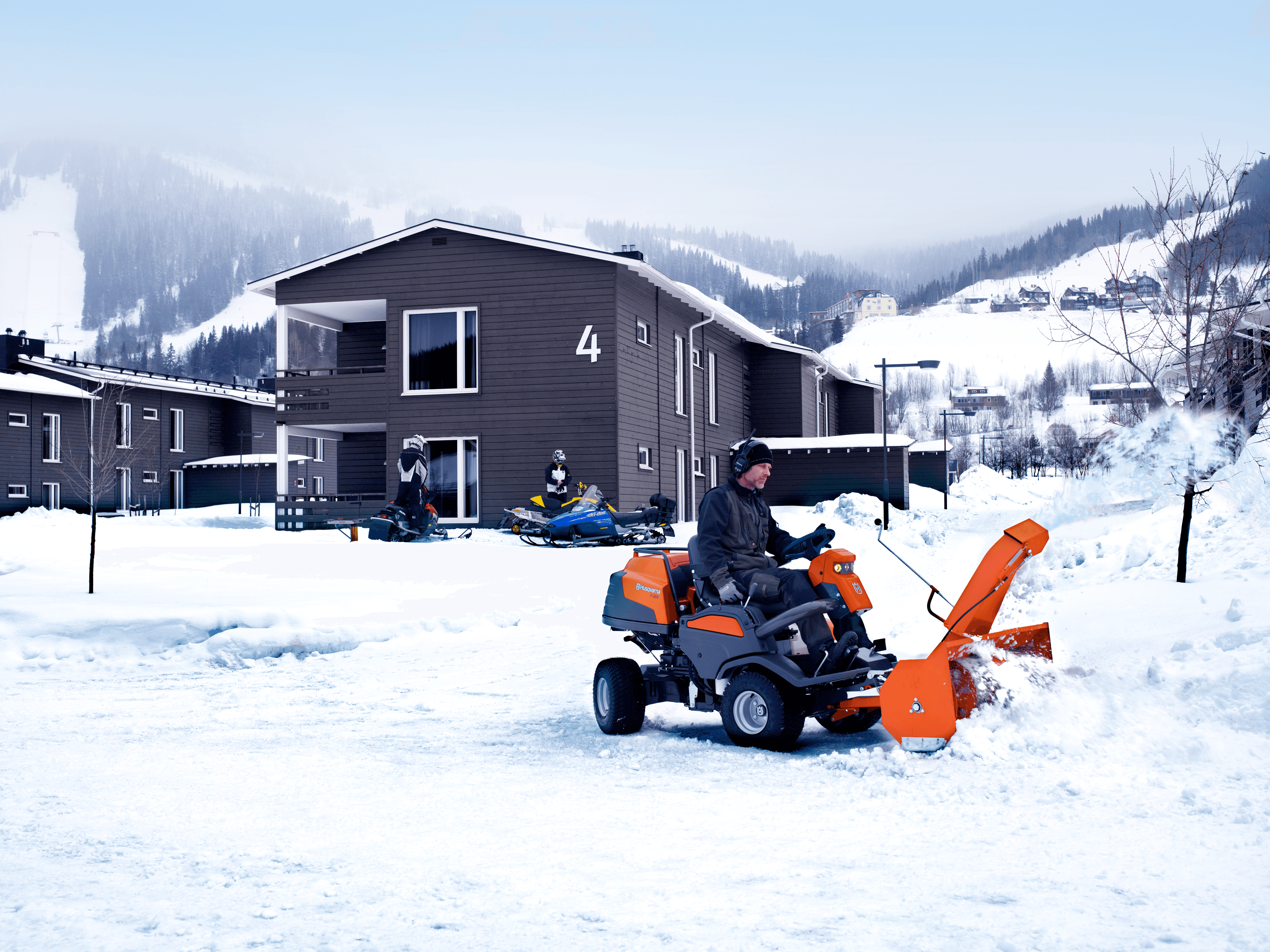

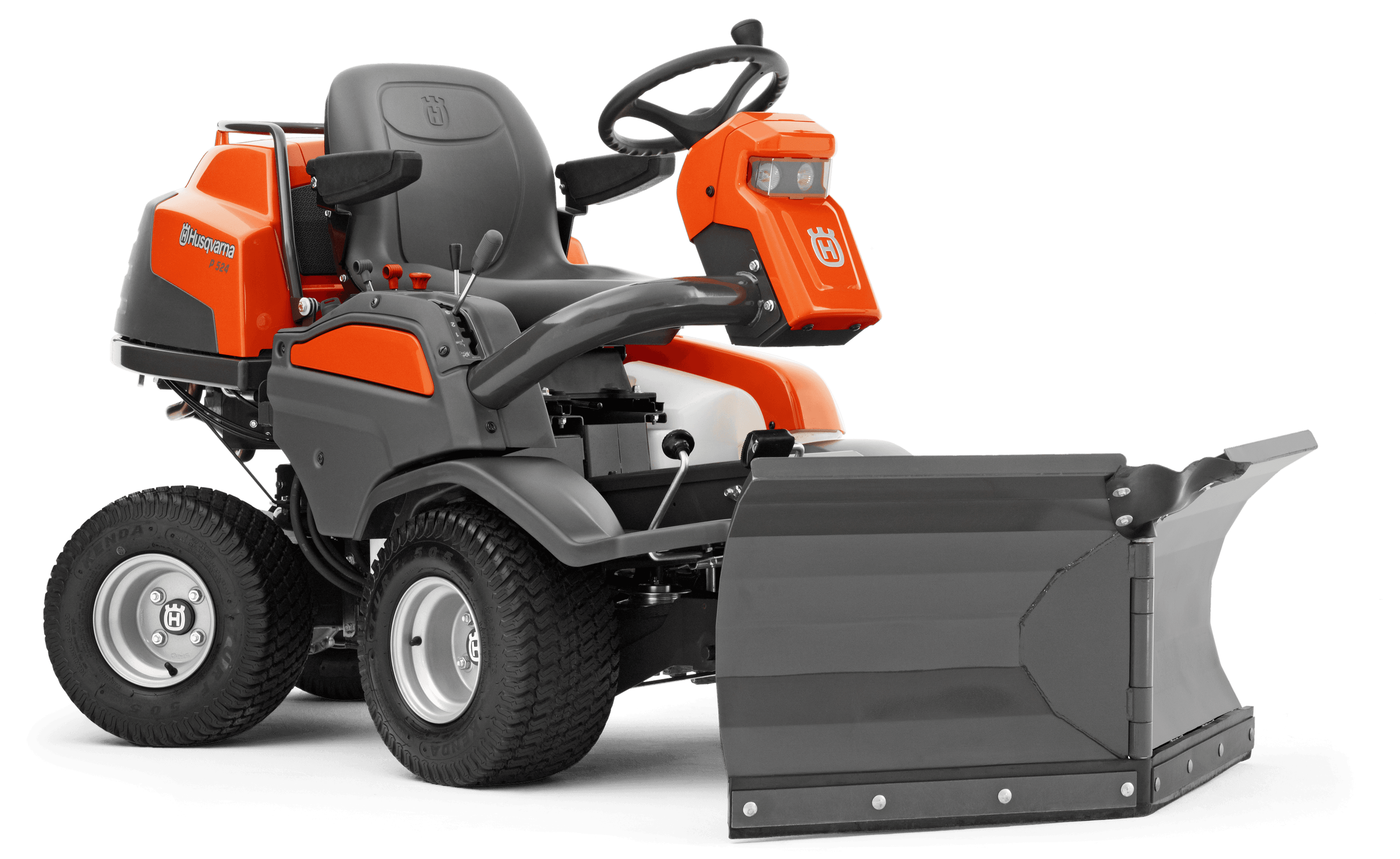

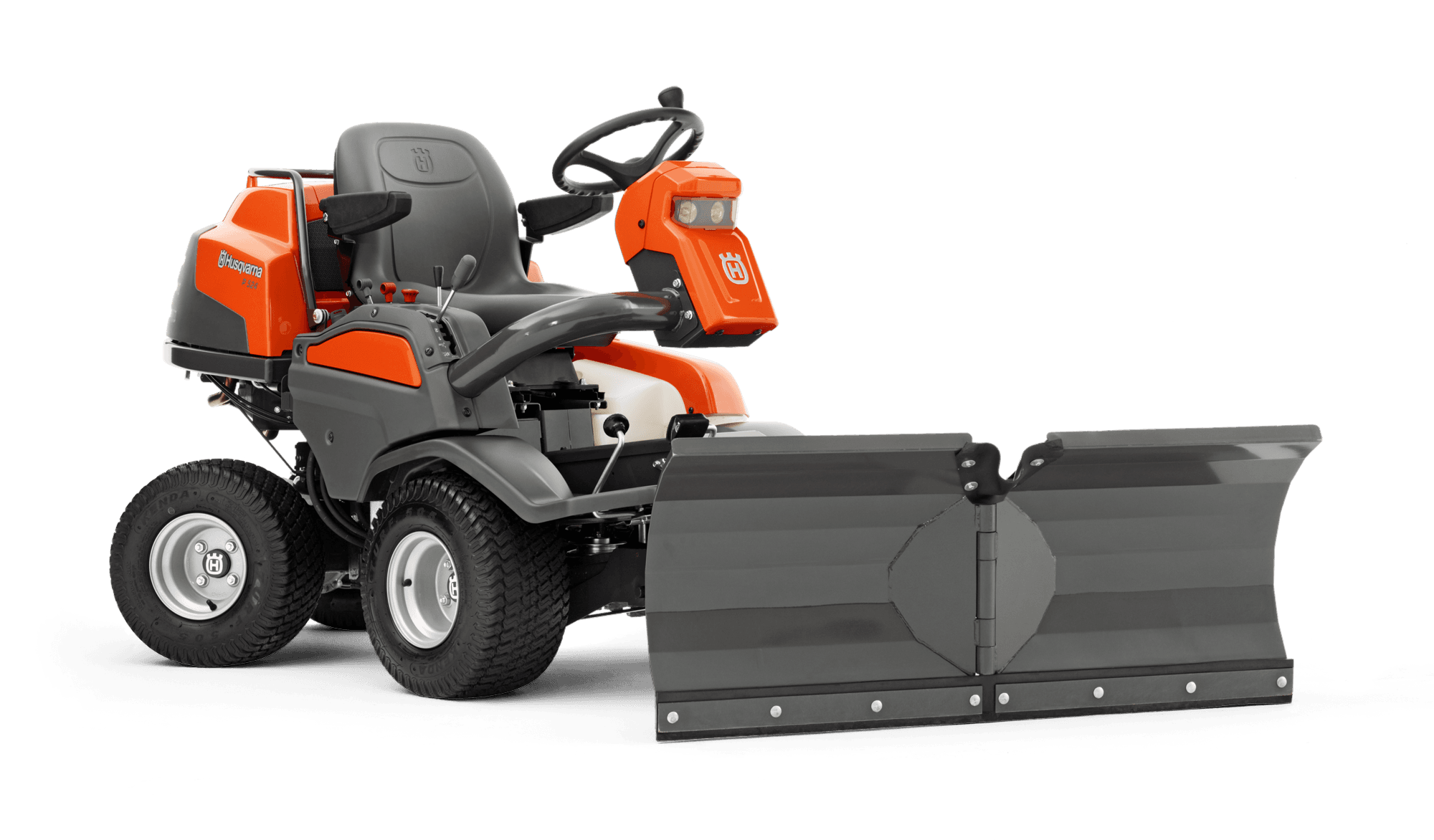

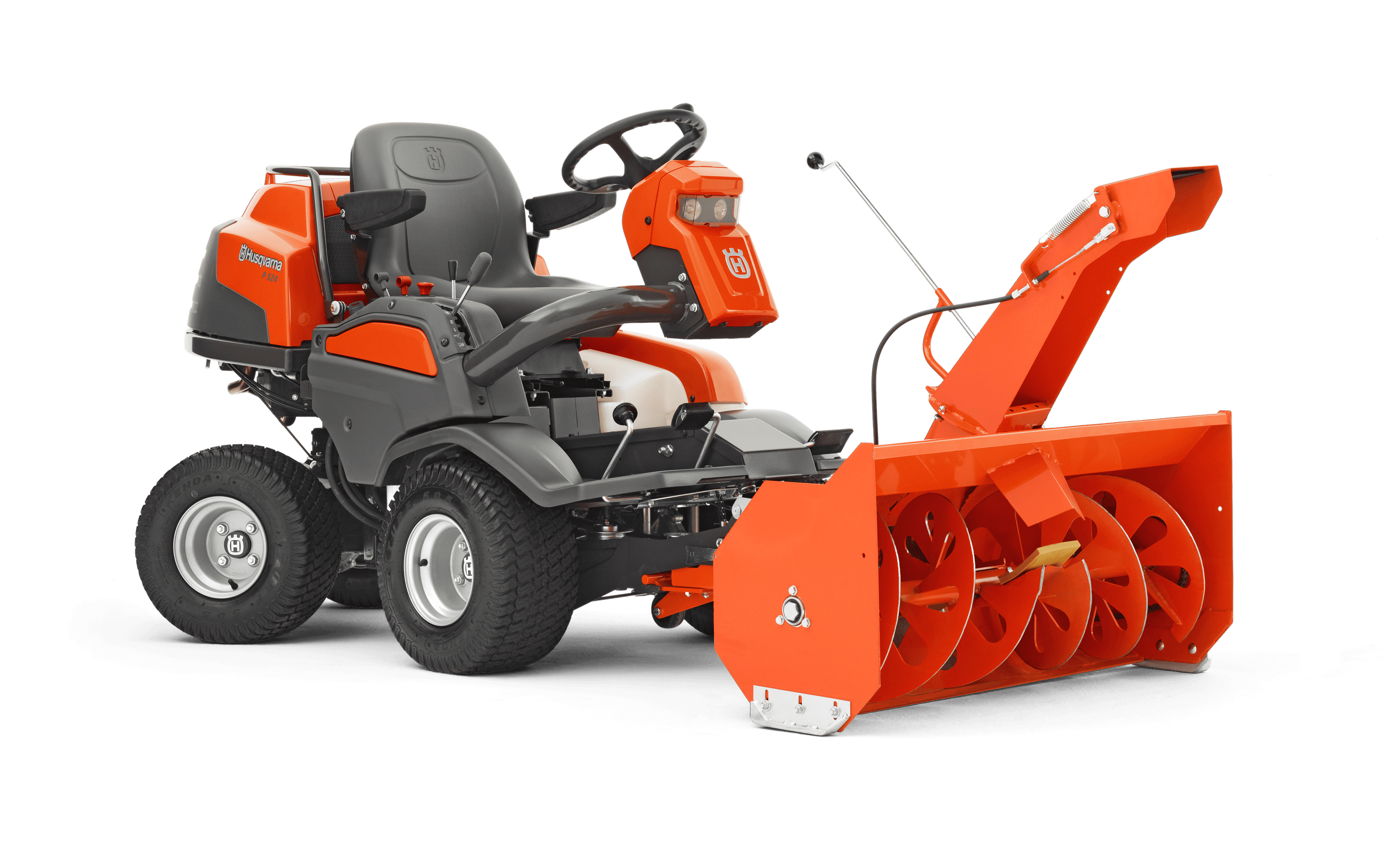

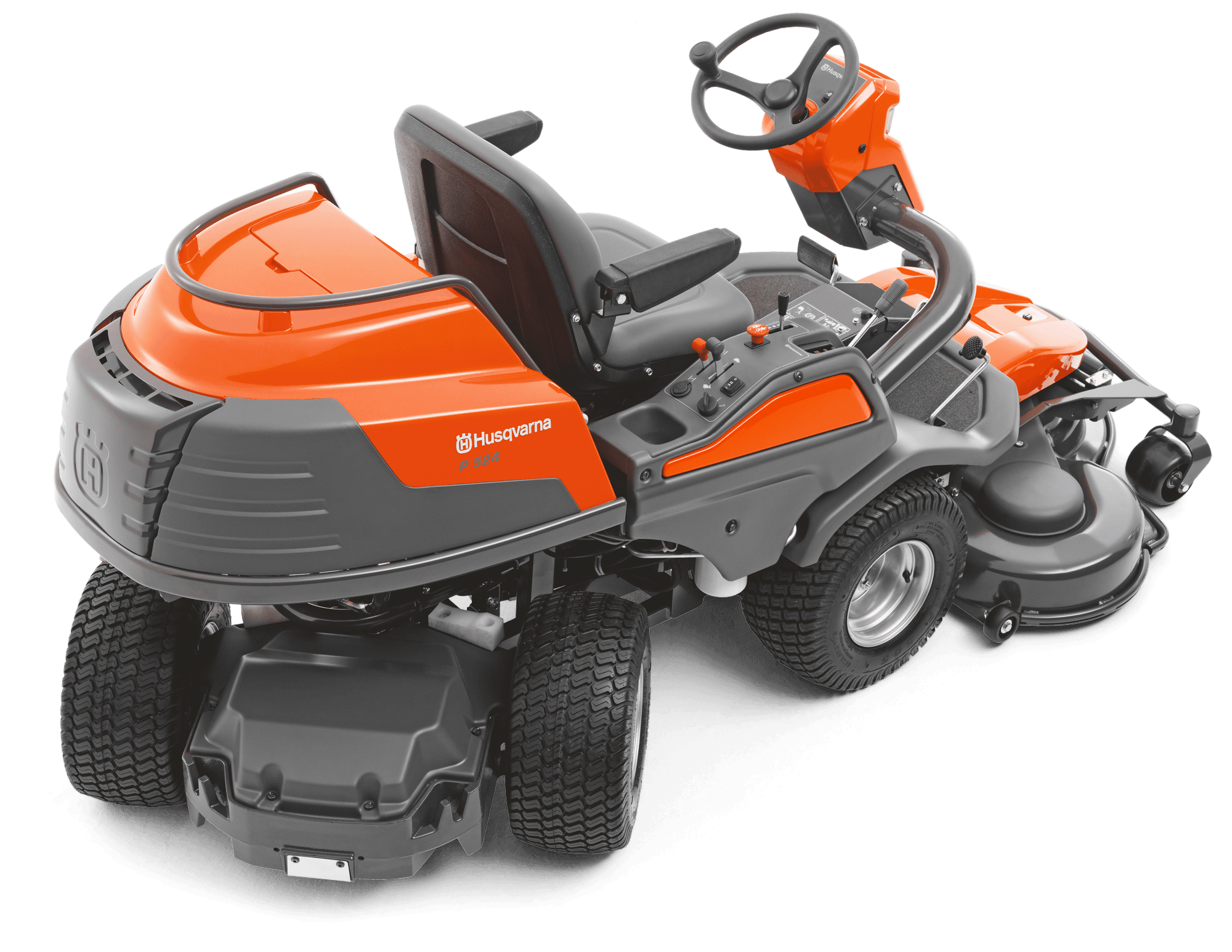

Compact and efficient All-Wheel-Drive front mower for year-round maintenance in complex and narrow areas. Suitable for sport clubs and hotels as well as housing agencies and contractors who want a versatile, compact front mower that is highly manoeuvrable. Thanks to the front-mounted cutting deck the operator has a perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Increased durability through long-life components. Attachments such as flail mower and broom give increased productivity all-year round. The P 524 can be fitted with either a 112 or 122 cm Combi cutting deck. Snow thrower, folding plough & snow blade attachments not available in AU/NZ markets. *Price excludes deck. Decks supplied at additional cost.

Product Information

Features (17)

Patented articulated steering

Min. clearance circle by articulated steering

The front-mounted cutting deck gives an excellent overview of the working area, enabling precise, close-up trimming. image

Trimming ability

Front-mounted cutting deck for precise trimming

Mowing accessibility

Unbeatable mowing accessibility

The machine’s low centre of gravity in combination with the high-performing AWD-system gives excellent slope and hillside stability. image

All-Wheel Drive (AWD)

Excellent hillside driving performance

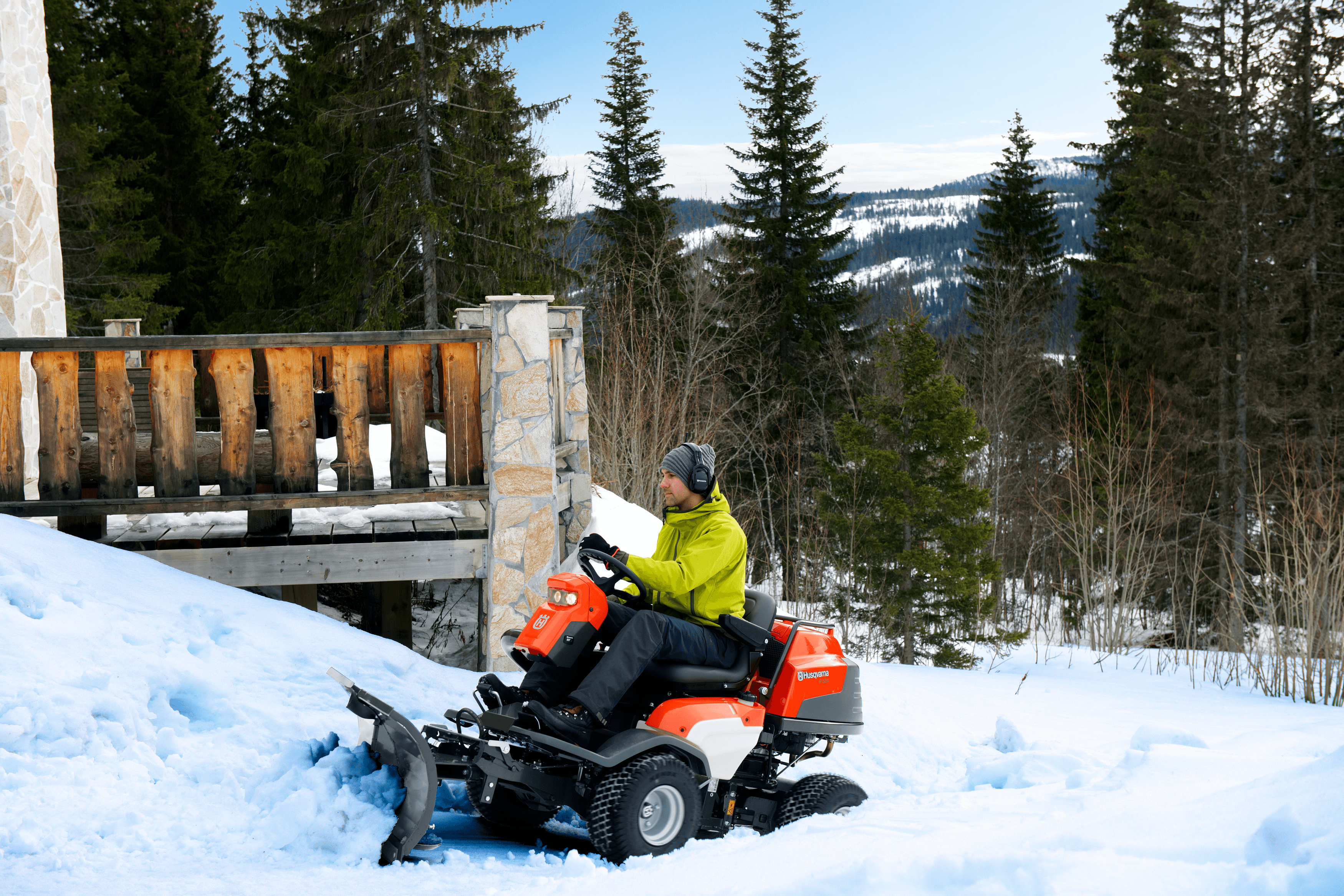

A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round. image

Versatile usage

Accessories for versatile year/round usage

Quick coupling

Easy tool exchange by unique quick coupling

Ergonomic operation

Ergonomic operator's interface

Heavy-duty hydraulic-cylinder power steering makes driving less strenuous. image

Hydraulic power steering

Hydraulic power steering for increased comfort

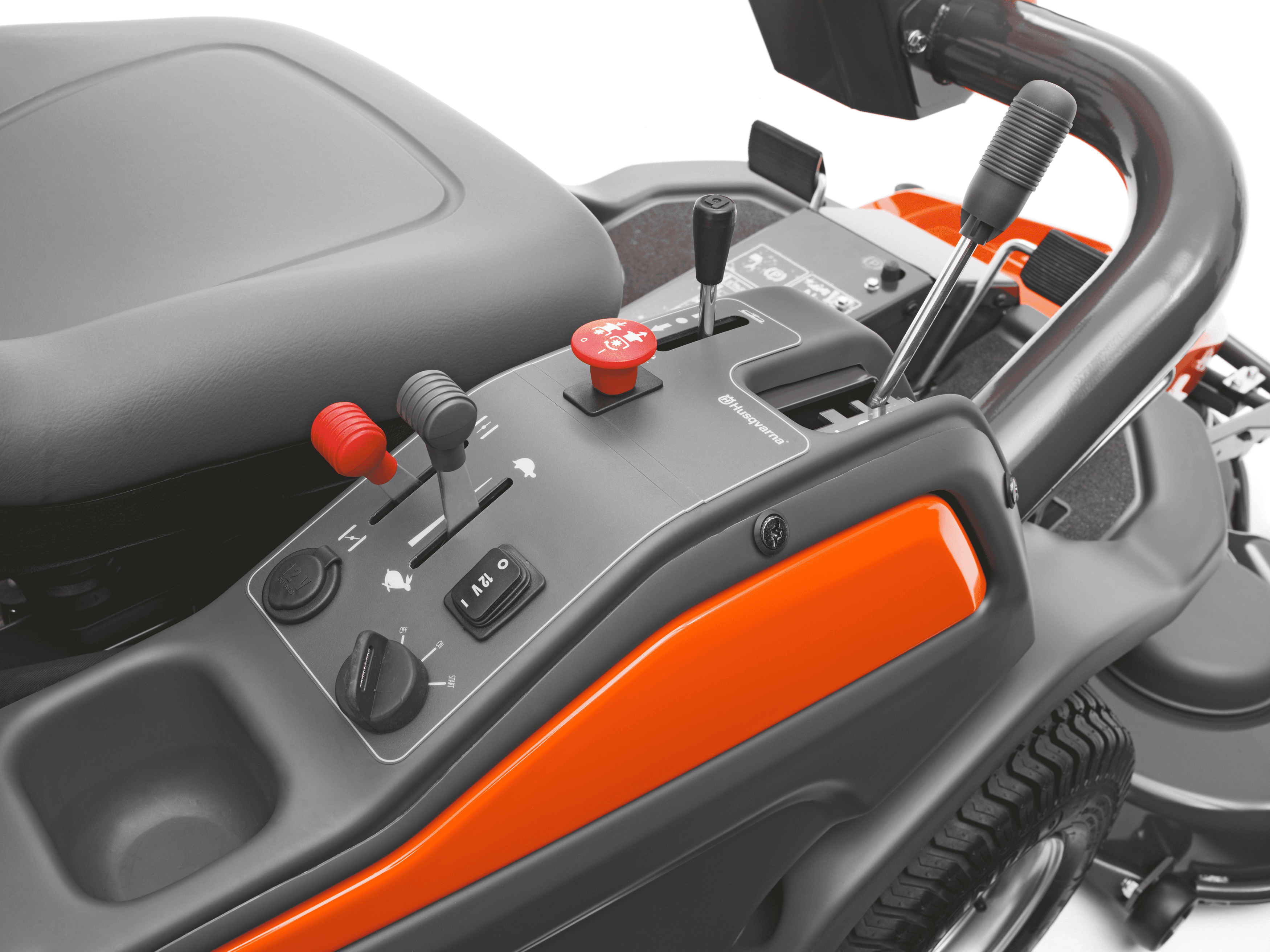

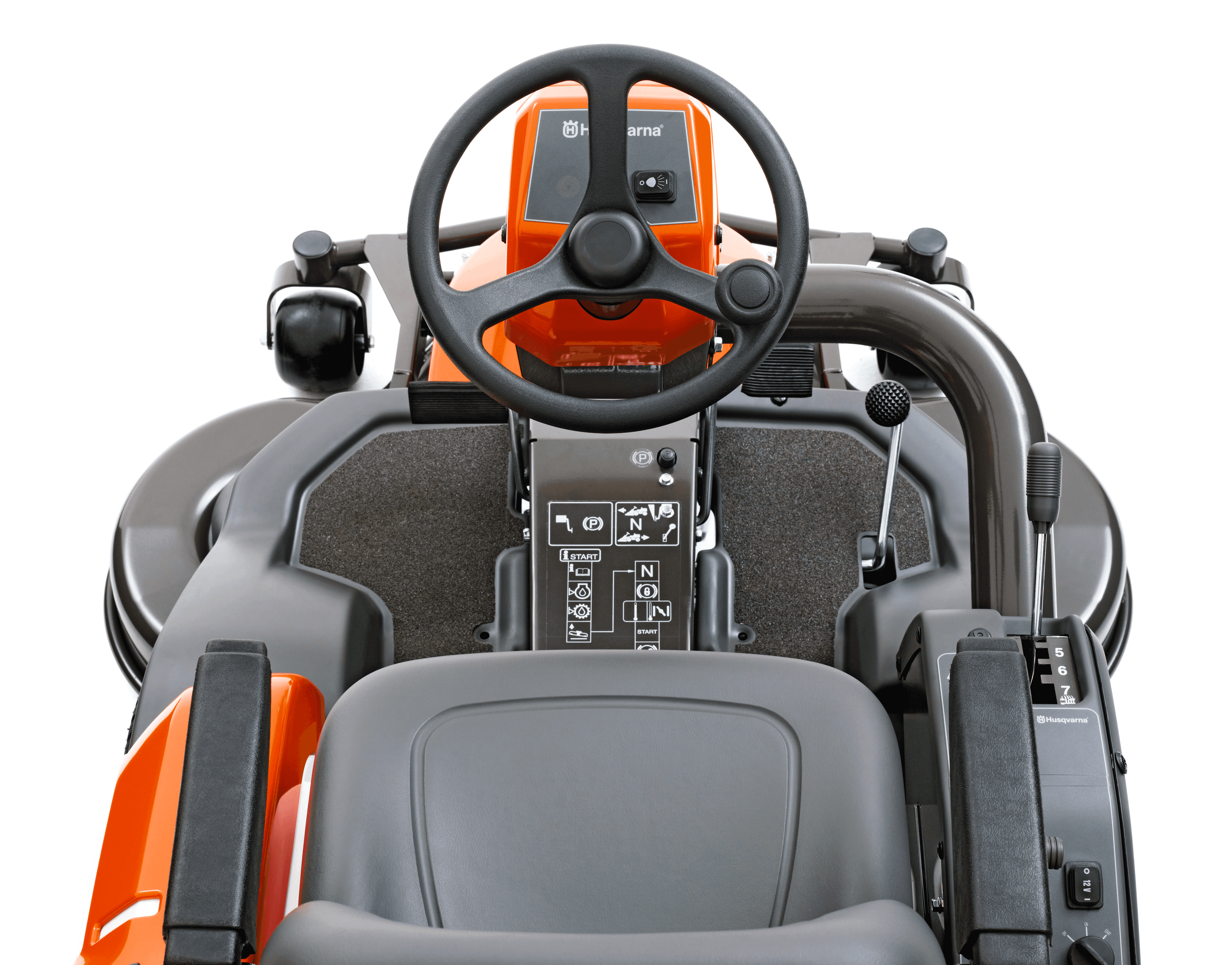

Controls are easy accessible and designed for optimum user comfort. image

Easy-access controls

Easy-access controls for user comfort

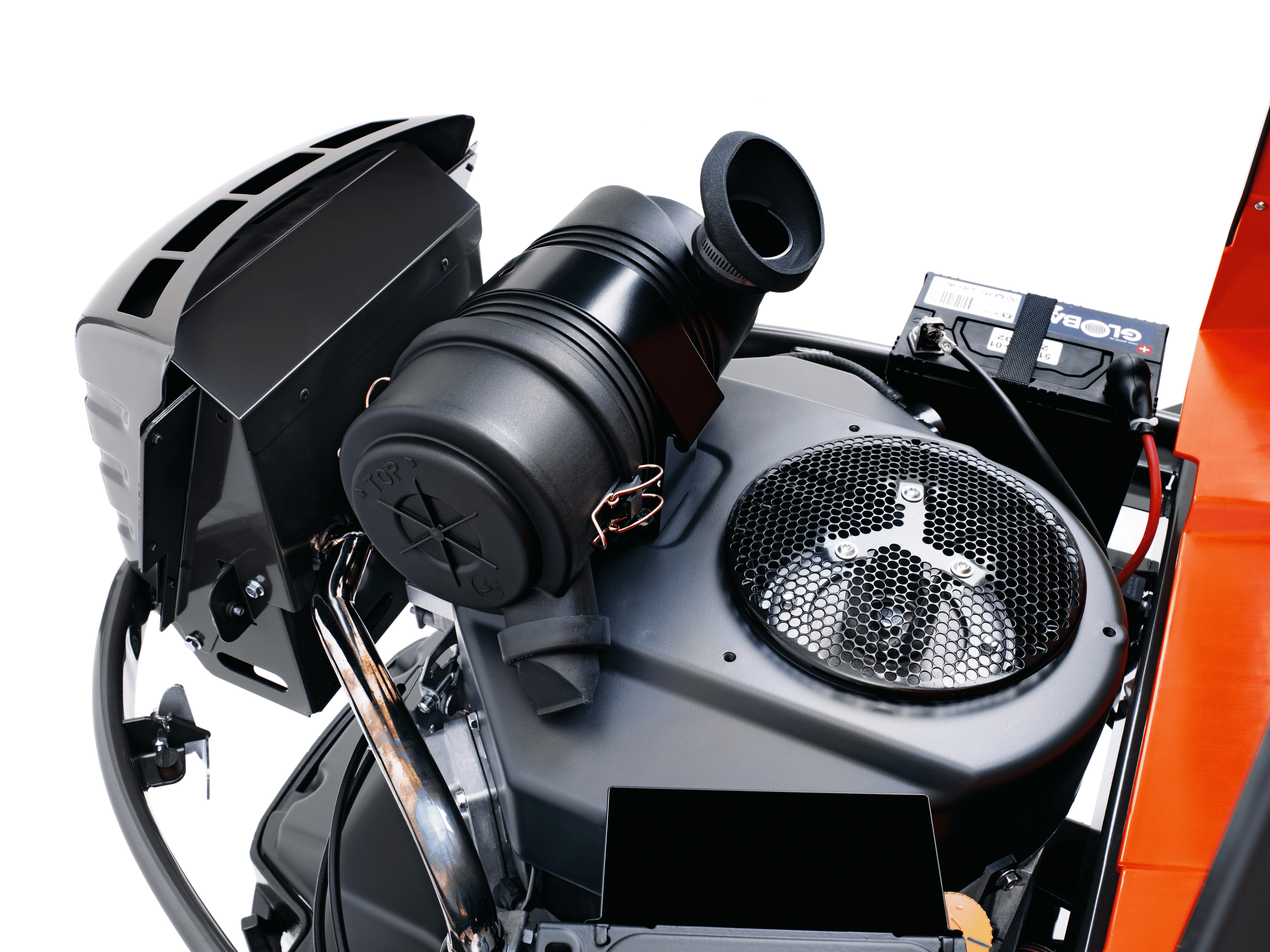

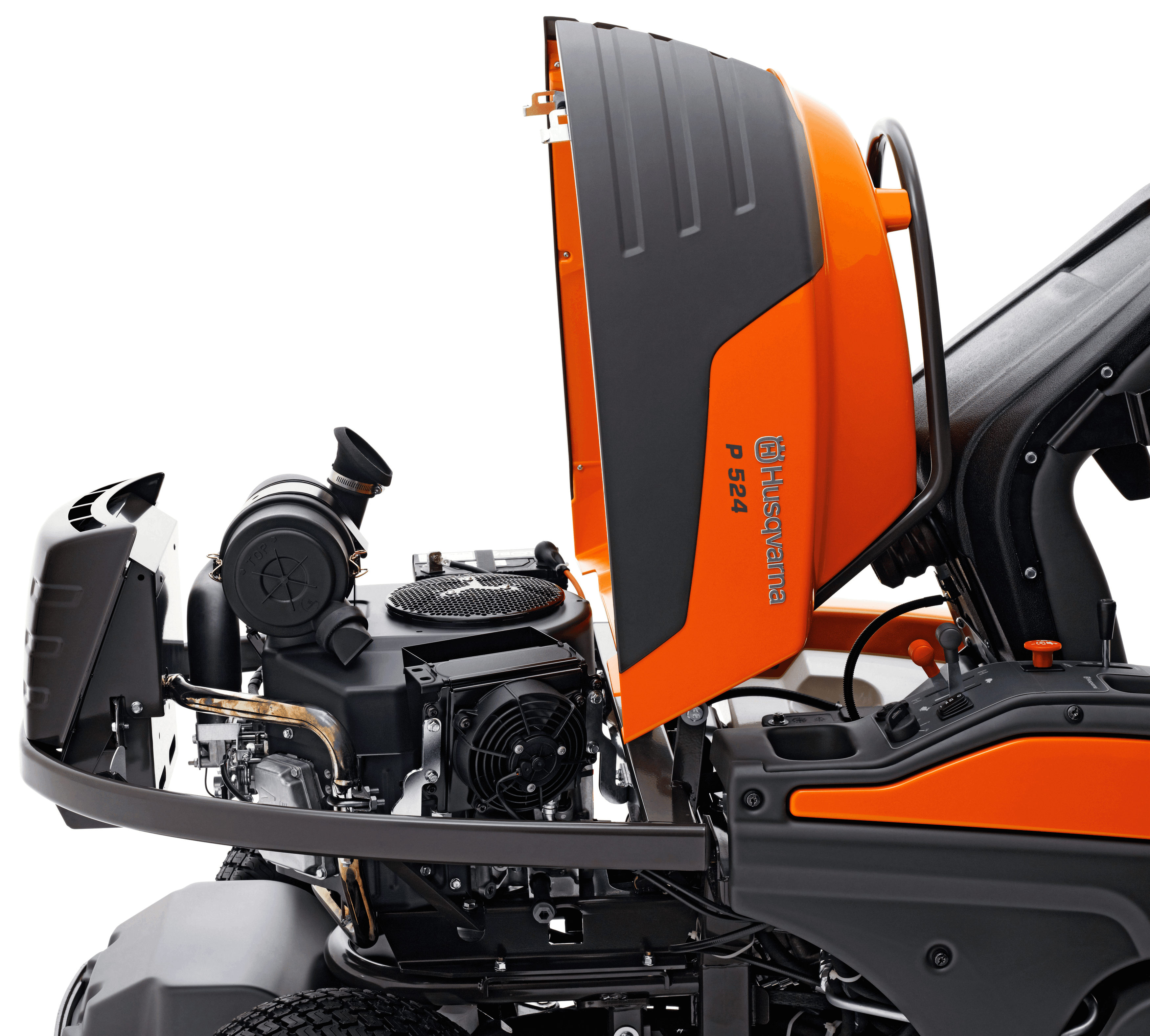

Tilting hood

Tilting hood makes maintenance quick and easy

For easy maintenance and longer lifetime. image

Greasable mandrels

Greasable mandrels for easy maintenance

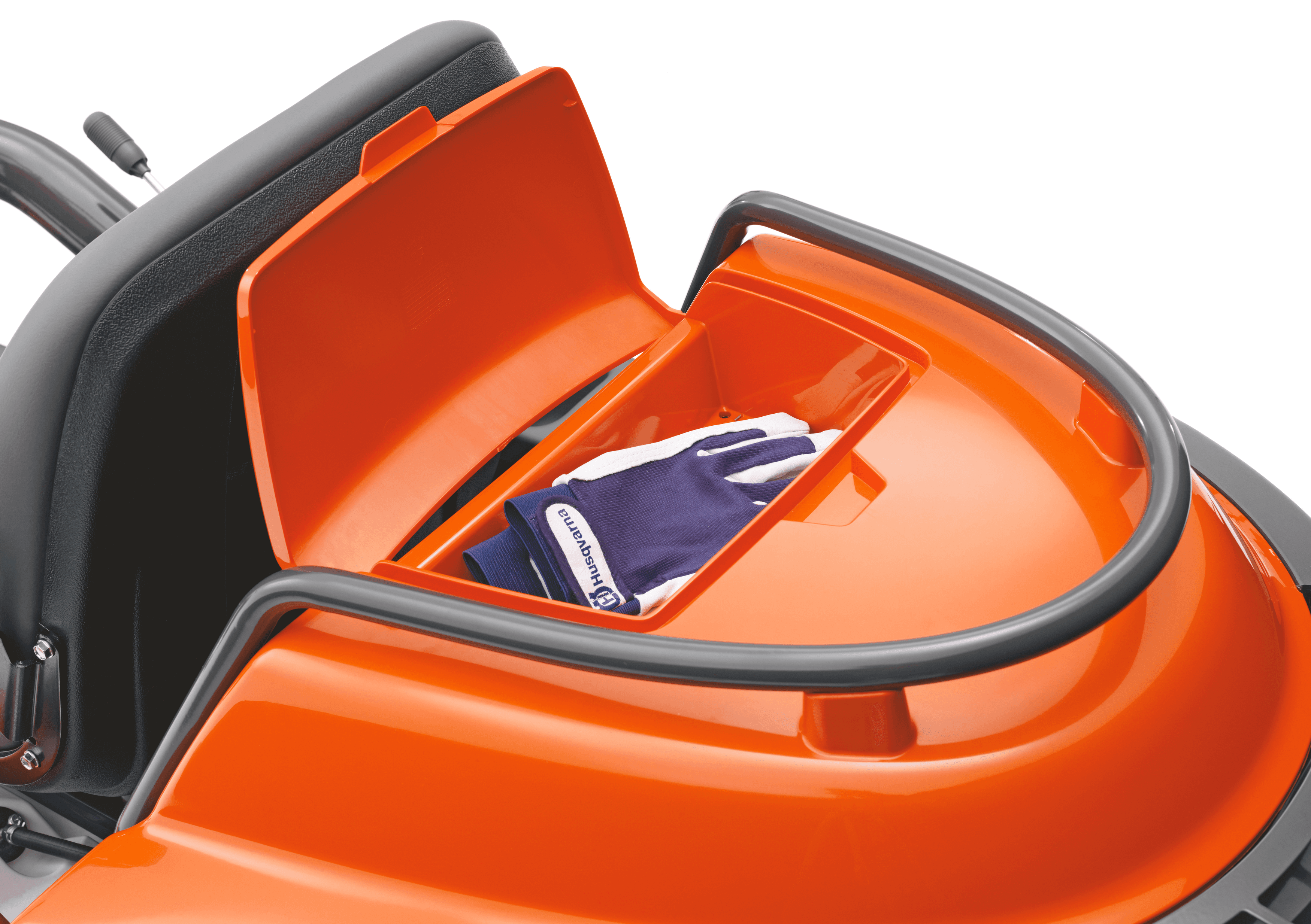

The practical carrier can be used for extra equipment. image

Cargo holder

Practical carrier for extra equipment

Service postion on the cutting deck facilitates cleaning and service. image

Service position

Service position for easy deck maintenance.

Heavy-duty steel ladder frame with reinforcements combined with an open design for excellent serviceability. image

Durable ladder frame

Heavy-duty, durable steel ladder frame

For improved durability the complete rear wagon is one piece of ductile cast iron. image

Cast iron rear wagon

Durable cast iron rear wagon

16 inch wheels

Equally sized wheels for a comfortable ride

Dual LED lights

Dual LED lights for enlarged lighted area and safer operation in darker conditions.

Specifications	Art No: 967847901
Output shaft power	13.9 kW
Weight (excl. cutting equipment)	427 kg
Cylinder displacement	726 cm³
Weight (complete product w/o side packed articles)	427 kg
Fuel tank volume	22 l
Sound pressure level at operators ear	88 dB(A)
Base machine, height	117.4 cm
Base machine, length	205 cm
Base machine, width	98 cm
Battery capacity	24 Ah
Battery pack weight	5.4 kg
Battery voltage	12 V
Cutting height max	80 mm
Cutting height min	25 mm
Cutting width, max	122 cm
Cutting width, min	112 cm
Deck thickness	4 mm
Fuel consumption	335 g/kWh
Fuel tank volume	5.8 gal (US)
Gross weight towed	200 kg
Ground clearance	105 mm
Net power at preset rpm	3000 rpm
Net power at preset rpm Energy	13.9 kW
Sound power level, guaranteed (LWA)	104 dB(A)
Sound power level, measured	102 dB(A)
Speed forward max	13 km/h
Speed reverse max	9 km/h
Uncut circle	50 cm
Vibration level seat	0.7 m/s²
Vibration level steering wheel	3 m/s²
Wheelbase	100 cm
